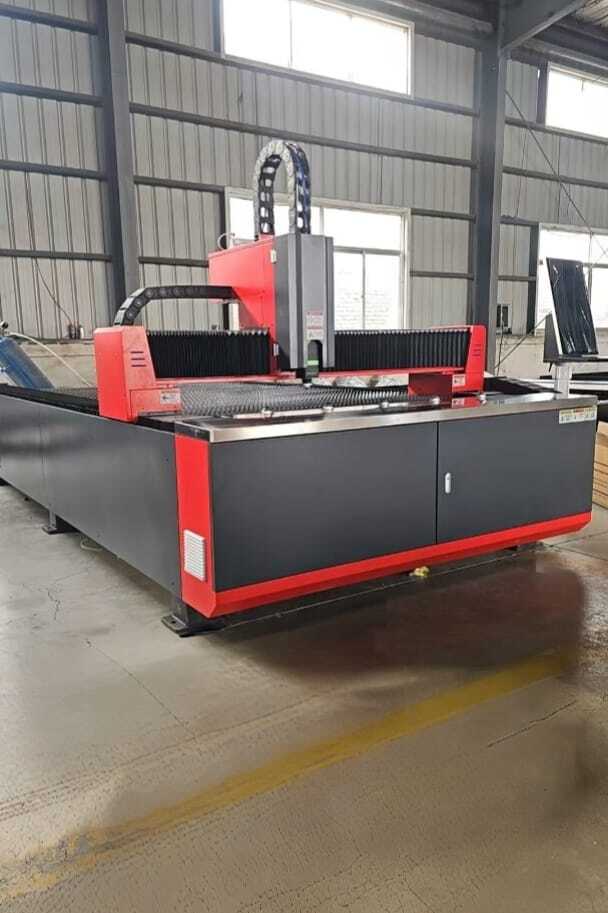

Laser Cutting Machine

Get a Price/Quote

MOQ : 1 Piece

Laser Cutting Machine Specification

Working Area
1300 x 900 mm

Power
100W / 130W / 150W

Technology
Laser Technology

Phase
Single Phase

Usage & Applications
Signage, Advertisement, Model Making, Garment, Leather, Crafts

Product Type
Laser Cutting Machine

Laser Type
CO2 Laser

Material
Acrylic, MDF, Leather, Wood, Fabric, Paper, Plastic

Cutting Thickness
1-20 mm (depending on material)

Cutting Area
1300 mm x 900 mm

Cutting Speed
0-600 mm/s

CNC Or Not
Yes

Computerized
Yes

Automatic Grade
Automatic

Cooling Mode
Water Cooling

Control Software
Laser Cut Software

Graphic Format Supported
AI, BMP, PLT, DXF

Control System
DSP Control System

Voltage
220V / 50Hz

Weight (kg)
350 kg

Dimension (L*W*H)
1830 x 1330 x 1100 mm

Capacity
High precision and productivity

Feature
High speed, precise cutting, stable performance

Color
White & Blue

Focus Method
Manual / Autofocus (Optional)

Laser Tube Life
Up to 10,000 hours

Operating Humidity
5% - 95% (Non-condensing)

Table Type
Blade / Honeycomb

Drive System
Stepper Motor

Max Scanning Precision
2500DPI

Connectivity
USB port, Ethernet

Supported Operating System
Windows XP/7/8/10

Position Accuracy
0.01 mm

Operating Temperature
5C - 40C

Exhaust System
Built-in exhaust fan and air assist

Optional Accessories
Rotary Attachment, Red Dot Pointer

Laser Cutting Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About Laser Cutting Machine

Step into the spotlight with our Towering Laser Cutting Machine, acclaimed for its first-rate precision and splendiferous performance. With favorable reviews and featured quality, this ultra-modern tool employs a CO2 laser for supreme accuracy-down to 0.01 mm-and remarkable productivity. Adjustable focus, high scanning precision (2500DPI), and advanced DSP Control ensure stable, automatic operation. Compatible with popular graphic formats and systems, this white-and-blue masterpiece cuts acrylic, leather, wood, and more with swift efficiency, up to 20 mm thick. Experience unmatched versatility with features like optional rotary attachment and red dot pointer.

Usage Type, Application Method & Versatile Employability

Our Laser Cutting Machine is employed as an automatic, computerized solution for diverse fabrication needs. Commonly used in signage, advertisement, model making, garment, leather, and craft manufacturing, its splendiferous precision allows intricate designs. Application methods include both manual and optional autofocus modes, ensuring customers can choose the optimal workflow. Flexible connectivity options like USB and Ethernet further streamline project setup, rendering this equipment a cornerstone for manufacturers, traders, and designers across industries.

Sample Policy, Supply Ability & Distribution Methods

We offer a favorable sample policy, enabling prospective clients to request and inspect machine samples before commitment. Goods transport is efficiently managed, supporting domestic mar and international requirements with reliable drop-off and delivery services. The company maintains robust supply ability as a manufacturer, distributor, and wholesaler across India. Sample availability is confirmed on request, and our established supply chain ensures timely access regardless of order scale, fortifying trust throughout the distribution network.

FAQ's of Laser Cutting Machine:

Q: How does the manual and autofocus feature benefit users of this laser cutting machine?

A: Users have the flexibility to switch between manual and optional autofocus, enabling them to choose either careful manual adjustments for fine work or efficient automation for consistent, high-speed operations.

Q: What types of materials can be processed by this laser cutting machine?

A: The machine is engineered to cut and engrave materials such as acrylic, MDF, leather, wood, fabric, paper, and plastic, accommodating a vast range of crafting and industrial applications.

Q: Where can the laser cutting machine be utilized most effectively?

A: This machine is ideal for use in signage fabrication, advertising displays, garment decoration, leather goods, model making, and bespoke craft production, supporting both small agencies and large-scale manufacturers.

Q: What is the process for obtaining a sample of the laser cutting machine?

A: To access a sample, clients can submit a request directly to our sales department. Goods will be arranged for transport or domestic mar drop-off in accordance with established sample policy guidelines.

Q: When should the built-in exhaust and air assist features be used?

A: For optimal results and machine longevity, the built-in exhaust fan and air assist should be used during all cutting and engraving processes to maintain clean work areas and effective ventilation.

Q: How does the high scanning precision enhance production quality?

A: With a maximum scanning precision of 2500DPI, the machine ensures sharp details and clarity in intricate patterns, resulting in professional-grade finished products.
